140mm fans

• Start
• Prev
• 1
• 2
• Next
• End

• 1
• 2

• Vampire
• Topic Author
• Offline
• Senior Member
•

Less More

• Posts: 115
• Thank you received: 4

7 years 2 months ago #1 by Vampire

140mm fans was created by Vampire

Can someone please tell me the inner diameter of a 140mm fan? Thanks in advance!

Please Log in or Create an account to join the conversation.

• Nik
•
• Offline
• Moderator
•
• Just do it!

Less More

• Posts: 363
• Thank you received: 25

7 years 2 months ago #2 by Nik

Replied by Nik on topic 140mm fans

do you mean the blades or the inner size of the frame?

---

---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

• Vampire
• Topic Author
• Offline
• Senior Member
•

Less More

• Posts: 115
• Thank you received: 4

7 years 2 months ago #3 by Vampire

Replied by Vampire on topic 140mm fans

Both preferably

Please Log in or Create an account to join the conversation.

• Nik
•
• Offline
• Moderator
•
• Just do it!

Less More

• Posts: 363
• Thank you received: 25

7 years 2 months ago - 7 years 2 months ago #4 by Nik

Replied by Nik on topic 140mm fans

hm, the problem is...
I don't have any 140mm fans. 40, 60, 80, 92, 120 & 240mm, but no 140mm...

---

---
Why ???
Because I can !!!

Last edit: 7 years 2 months ago by Nik.

Please Log in or Create an account to join the conversation.

• Vampire
• Topic Author
• Offline
• Senior Member
•

Less More

• Posts: 115
• Thank you received: 4

7 years 2 months ago #5 by Vampire

Replied by Vampire on topic 140mm fans

Okay thanks

Please Log in or Create an account to join the conversation.

• SpruceGuy
•
• Offline
• Administrator
•

Less More

• Posts: 66
• Thank you received: 6

7 years 2 months ago - 7 years 2 months ago #6 by SpruceGuy

Replied by SpruceGuy on topic 140mm fans

Hi Vampire,

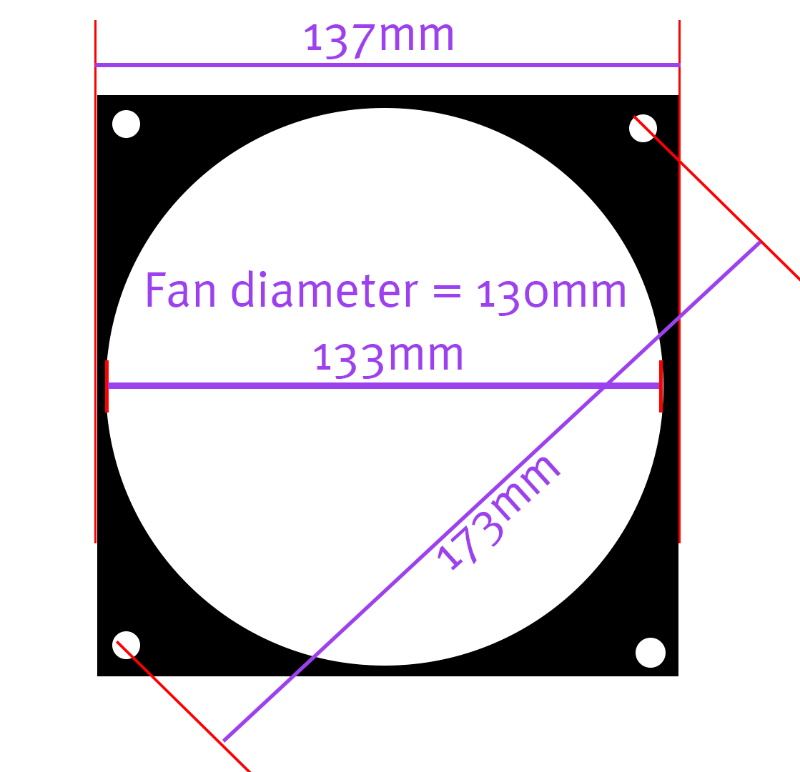

This is what your looking for...

Fan external chassis width = 137mm
Fan internal chassis width = 133mm
Fan blades width = 130mm
Mounting holes diagonal = 173mm

That should help you get the correct hole to be cut out for mounting!
Good luck!

Thats a Phantek 140mm but most will work out similar give or take 1or2mm which you can adjust for easily.

---

SpruceGuy,
Hardware Hackers Team

Attachments:

•

Last edit: 7 years 2 months ago by SpruceGuy.

Please Log in or Create an account to join the conversation.

• Vampire
• Topic Author
• Offline
• Senior Member
•

Less More

• Posts: 115
• Thank you received: 4

7 years 2 months ago #7 by Vampire

Replied by Vampire on topic 140mm fans

Thank you so much SpruceGuy!

Please Log in or Create an account to join the conversation.

• Nik
•
• Offline
• Moderator
•
• Just do it!

Less More

• Posts: 363
• Thank you received: 25

7 years 2 months ago #8 by Nik

Replied by Nik on topic 140mm fans

Yeah, 100% professional sketch!
couldn't have done it better.

---

---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

• Martin
•
• Offline
• Administrator
•

Less More

• Posts: 314
• Thank you received: 17

7 years 2 months ago #9 by Martin

Replied by Martin on topic 140mm fans

love the over engineered drawing! Have you been stealing my MS Pain skills again SpruceGuy???!

good work

---

Martin,
Hardware Hackers Team

Please Log in or Create an account to join the conversation.

• SpruceGuy
•
• Offline
• Administrator
•

Less More

• Posts: 66
• Thank you received: 6

7 years 2 months ago #10 by SpruceGuy

Replied by SpruceGuy on topic 140mm fans

Yeah maybe slightly than to what was needed but ill sort out a thread with fan mounting sizes for fellow hackers

---

SpruceGuy,
Hardware Hackers Team

Please Log in or Create an account to join the conversation.

• Nik
•
• Offline
• Moderator
•
• Just do it!

Less More

• Posts: 363
• Thank you received: 25

7 years 2 months ago #11 by Nik

Replied by Nik on topic 140mm fans

cool idea!

---

---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

• Vampire
• Topic Author
• Offline
• Senior Member
•

Less More

• Posts: 115
• Thank you received: 4

7 years 2 months ago #12 by Vampire

Replied by Vampire on topic 140mm fans

That is an awesome idea! Should make a thread with all the screw spacings for all components in a computer

Please Log in or Create an account to join the conversation.

• SpruceGuy
•
• Offline
• Administrator
•

Less More

• Posts: 66
• Thank you received: 6

7 years 1 month ago #13 by SpruceGuy

Replied by SpruceGuy on topic 140mm fans

Yeah Ill start collecting up the info and get building up a threads

So will the following cover it or have I missed something ?...

Fan Dimensions / Mounting
Water Cooling Rad Dimensions / Mounting
Hdd Dimensions / Mounting
Optical Drive Dimensions / Mounting
Powersupply Dimensions / Mounting
Motherboard Dimensions / Mounting (ATX / Micro ATX / Mini ITX etc)
GPU Dimensions Database

---

SpruceGuy,
Hardware Hackers Team

Please Log in or Create an account to join the conversation.

• Nik
•
• Offline
• Moderator
•
• Just do it!

Less More

• Posts: 363
• Thank you received: 25

7 years 1 month ago #14 by Nik

Replied by Nik on topic 140mm fans

I think you've covered every important part.

---

---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

• Vampire
• Topic Author
• Offline
• Senior Member
•

Less More

• Posts: 115
• Thank you received: 4

7 years 1 month ago #15 by Vampire

Replied by Vampire on topic 140mm fans

I think that's about all
