Overclocking a pentium mmx

  • Poicly
  • Poicly's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • ~A E S T A T i C~
More
7 years 3 months ago #1 by Poicly
Overclocking a pentium mmx was created by Poicly
Hi, I got an old Pentium mmx clocked at 200 mhz and i would Like to overclock it to 233mhz, the os i use is Windows 2000, am i able to do this by using the BIOS or do i need special software, this is the first time i ever wanted to overclock a CPU, thx :-)
Ø

Please Log in or Create an account to join the conversation.

More
7 years 3 months ago #2 by Nik
Replied by Nik on topic Overclocking a pentium mmx
no special software.
but if you tell us something about the rest of your hardware, it's easier to explain what to do. ;)
---
Why ???
Because I can !!!
The following user(s) said Thank You: Poicly

Please Log in or Create an account to join the conversation.

More
7 years 3 months ago - 7 years 3 months ago #3 by SpruceGuy
Replied by SpruceGuy on topic Overclocking a pentium mmx
Hi Poicly,
Nik is right if you tell us more about your motherboard we could help point you in the right direction.

Older boards often have jumpers on them to set the clock speed and is just a case of setting the jumpers correctly to increase the FSB.

(If your CPU will run at the selected FSB depends on the cpu but 200 to 233 should be relatively straight forward.)
SpruceGuy,
Hardware Hackers Team
Last edit: 7 years 3 months ago by SpruceGuy.
The following user(s) said Thank You: Poicly

Please Log in or Create an account to join the conversation.

More
7 years 3 months ago - 7 years 3 months ago #4 by Nik
Replied by Nik on topic Overclocking a pentium mmx

...
Older boards often have jumpers on them to set the clock speed and is just a case of setting the jumpers correctly to increase the FSB.
...

Should have jumpers, my old socket 7 has them, too... ;)
---
Why ???
Because I can !!!
Last edit: 7 years 3 months ago by Nik.
The following user(s) said Thank You: Poicly

Please Log in or Create an account to join the conversation.

  • Poicly
  • Poicly's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • ~A E S T A T i C~
More
7 years 3 months ago #5 by Poicly
Replied by Poicly on topic Overclocking a pentium mmx
The motherboard is an soltek sl-54p5 socket 7, and it has these jumpers
and switches. any ideas which ones i have to move?
Ø

Please Log in or Create an account to join the conversation.

More
7 years 3 months ago #6 by Nik
Replied by Nik on topic Overclocking a pentium mmx
Yea, there must be a "chart" printed next to the Dip switches and another one next to the jumpers...
Can you take a picture of that charts together with switches/jumpers?
---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

  • Poicly
  • Poicly's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • ~A E S T A T i C~
More
7 years 3 months ago #7 by Poicly
Replied by Poicly on topic Overclocking a pentium mmx

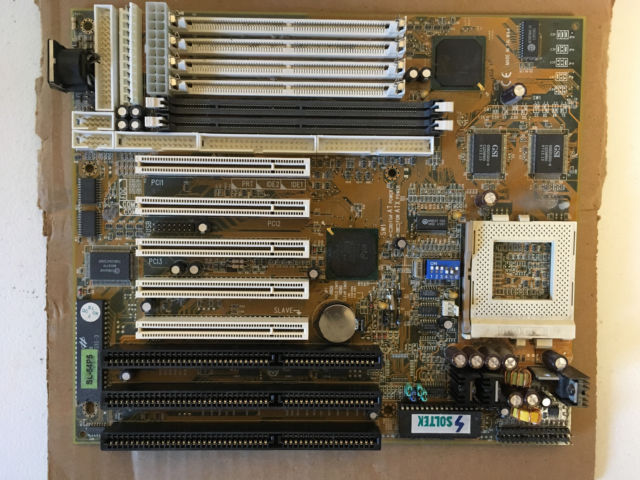

this is the best picture i can find online, when im home i will take Better pictures, i hope this helps!
Ø
Attachments:

Please Log in or Create an account to join the conversation.

More
7 years 3 months ago #8 by Nik
Replied by Nik on topic Overclocking a pentium mmx
A detailed shot of the charts will help a lot to tell you the settings.
I can see it on the left to the jumpers, but can't read it.
There is another one above the dip switches, this is important, too.
---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

  • Poicly
  • Poicly's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • ~A E S T A T i C~
More
7 years 3 months ago #9 by Poicly
Replied by Poicly on topic Overclocking a pentium mmx
I'm sorry, tomorow i'm home and i will take a picture as soon as i can :-)
Ø

Please Log in or Create an account to join the conversation.

More
7 years 3 months ago #10 by Nik
Replied by Nik on topic Overclocking a pentium mmx
that's ok, no problem. ;)
---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

  • Poicly
  • Poicly's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • ~A E S T A T i C~
More
7 years 3 months ago #11 by Poicly
Replied by Poicly on topic Overclocking a pentium mmx

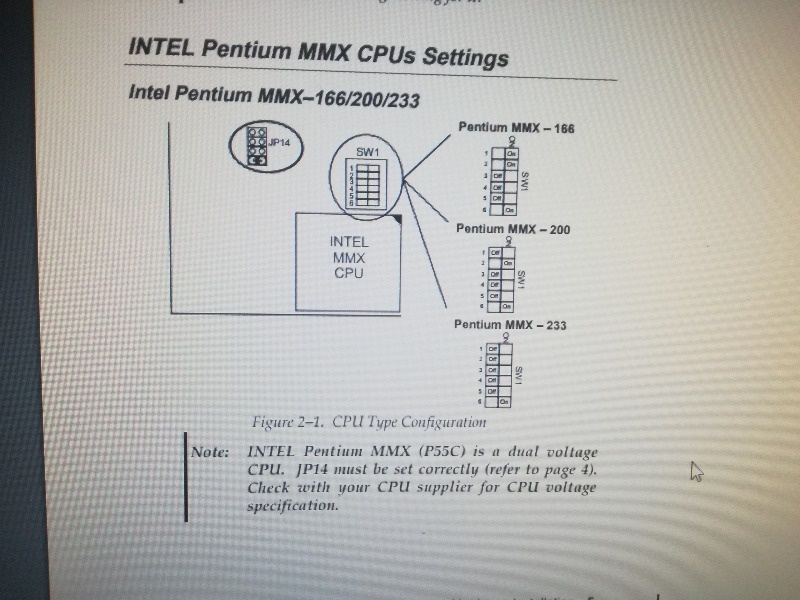

i found the manual for this motherboard. Can you ensure me that this is the correct configuration i need for overclocking my Pentium?
Ø
Attachments:

Please Log in or Create an account to join the conversation.

More
7 years 3 months ago #12 by Nik
Replied by Nik on topic Overclocking a pentium mmx
Is there another page that shows the settings of the DIP switches? that would be great, too.
---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

  • Poicly
  • Poicly's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • ~A E S T A T i C~
More
7 years 3 months ago #13 by Poicly
Replied by Poicly on topic Overclocking a pentium mmx
no, i don't see anything other than this, i got a page about the jumpers but that's just saying things about the voltage for diffirent processor types, this is the only page about the DIP switches, i tried the 233 switch setup and nothing changed, still at 200 mhz :(

ps: you guy's are lucky that i have so many problems with this computer otherwise there wouldn't be as much activity :P

pps: if you want to look at it yourself here is the link: www.elhvb.com/mobokive/archive/Soltek/Ma...207/sl-54s2/54p5.pdf
Ø

Please Log in or Create an account to join the conversation.

More
7 years 3 months ago - 7 years 3 months ago #14 by Nik
Replied by Nik on topic Overclocking a pentium mmx
check the JP14 chart on page 4 to assure the correct jumper setting for the VCore voltage plus the chart on page 13 / 14 for the clock setting.
BUT BE CAREFUL!
you might need a bigger fan and fresh thermal paste on it!!!

266 MHz @ 3.5 x 75 MHz are possible
---
Why ???
Because I can !!!
Last edit: 7 years 3 months ago by Nik.

Please Log in or Create an account to join the conversation.

  • Poicly
  • Poicly's Avatar Topic Author
  • Offline
  • Junior Member
  • Junior Member
  • ~A E S T A T i C~
More
7 years 3 months ago #15 by Poicly
Replied by Poicly on topic Overclocking a pentium mmx
Ok, i will try that tomorow, i will add some thermal paste, thanks for all the help! :)
