4 years 1 month ago #1 by Vampire
140mm fans was created by Vampire
Can someone please tell me the inner diameter of a 140mm fan? :) Thanks in advance!

Please Log in or Create an account to join the conversation.

More
4 years 1 month ago #2 by Nik
Replied by Nik on topic 140mm fans
do you mean the blades or the inner size of the frame?

---
Why ???
Because I can !!!

Please Log in or Create an account to join the conversation.

  • Vampire
  • Vampire's Avatar Topic Author
  • Offline
  • Senior Member
  • Senior Member
More
4 years 1 month ago #3 by Vampire
Replied by Vampire on topic 140mm fans
Both preferably :)

Please Log in or Create an account to join the conversation.

More
4 years 1 month ago - 4 years 1 month ago #4 by Nik
Replied by Nik on topic 140mm fans
hm, the problem is...
I don't have any 140mm fans. 40, 60, 80, 92, 120 & 240mm, but no 140mm...

---
Why ???
Because I can !!!
Last edit: 4 years 1 month ago by Nik.

Please Log in or Create an account to join the conversation.

  • Vampire
  • Vampire's Avatar Topic Author
  • Offline
  • Senior Member
  • Senior Member
More
4 years 1 month ago #5 by Vampire
Replied by Vampire on topic 140mm fans
Okay thanks :)

Please Log in or Create an account to join the conversation.

More
4 years 1 month ago - 4 years 1 month ago #6 by SpruceGuy
Replied by SpruceGuy on topic 140mm fans
Hi Vampire,

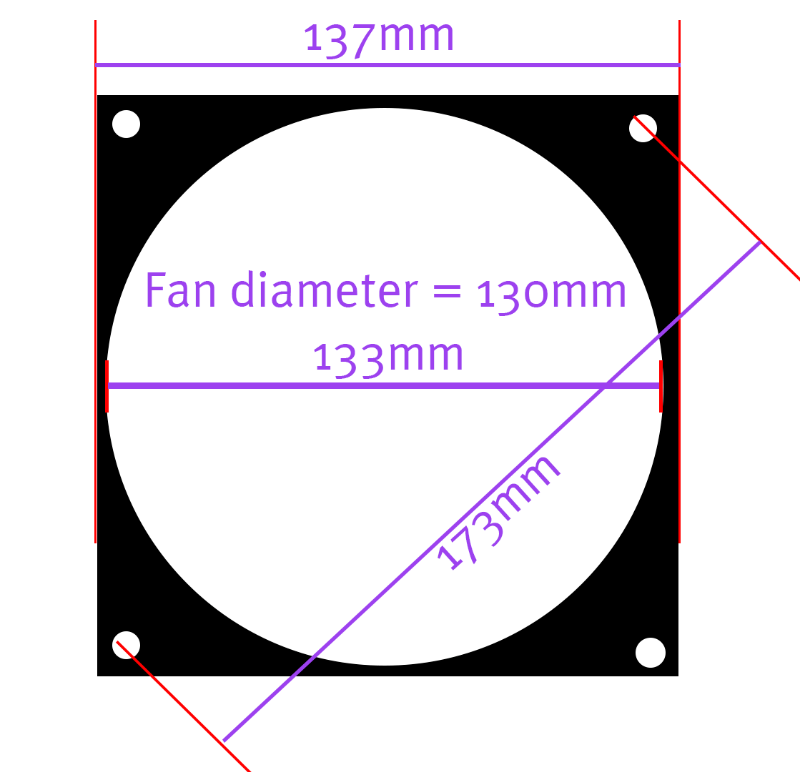

This is what your looking for...
